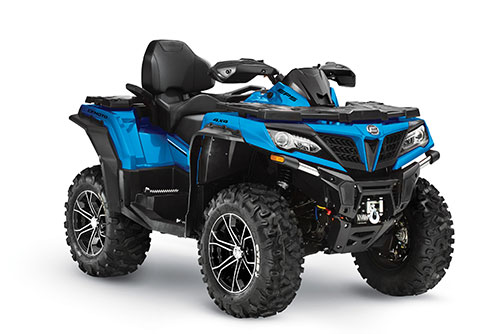

800 CC ATV – Ride with the big boys!
TOP FEATURES
- 65 hp V-Twin, liquid cooled 8-valve engine
- Easy-shift gate system
- 12-Function digital gauge, w/hours, brightness adjust & voltage
- CVTech transmission
- Electronic Power Steering
- Double A-Arm front suspension, Independent trailing arm rear
- Fully adjustable gas shocks
- Ground clearance: 11.2”
- 14” alloy wheels, 26 inch radial tires
- 2” hitch receptacle
- USB & DC power outlet, LED projector beam headlights, & LED running lights
- 3000lb winch
CF 800 CC 4-Wheeler Quad Specs
ENGINE
-
ENGINE TYPE:V-TWIN, 4-STROKE, SOHC, 8-VALVE
-
ENGINE DISPLACEMENT:800 CC
-
FUEL SYSTEM:BOSCH® ELECTRONIC FUEL INJECTION
-
MAX POWER OUTPUT:62 HP @ 7250 RPM
-
MAX TORQUE:53 FT. LBS. @ 6250 RPM
-
COOLING SYSTEM:LIQUID COOLED
-
STARTER:ELECTRIC
-
TRANSMISSION:CVTECH® AUTOMATIC P/R/N/H/L
WHEELS, SUSPENSION, AND BRAKES
-
WHEELS:14” CAST ALUMINUM ALLOY
-
WHEELBASE:58”
-
TIRES (FRONT):26 X 9-R14
-
TIRES (REAR):26 11-R14
-
SUSPENSION (FRONT):DUAL A-ARM SUSPENSION
-
SUSPENSION (REAR):TRAILING ARM SUSPENSION
-
SHOCK ABSORBER:OIL/GAS
-
BRAKES (FRONT/REAR):HYDRAULIC
DIMENSIONS AND WEIGHT
-
LENGTH:90.5”
-
WIDTH:48”
-
HEIGHT:56.7”
-
SEAT HEIGHT (FRONT):36.6”
-
FUEL TANK CAPACITY:7.3 GALLONS
STANDARD EQUIPMENT
-
HITCH/RECEIVER:2”
-
TOWING CAPACITY:873 LBS.
